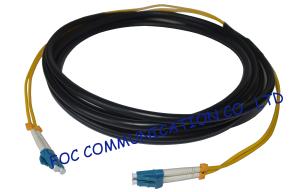

Armored Fiber Optic Assemblies Outdoor Type LC SM High Crush Resistance

Name: Armored Fiber Optic Assemblies Outdoor Type LC SM High Crush Resistance
Brand: FOCABLE
Price: 1 USD

Brand Name : FOCABLE

Model Number : Armored Patch Cord LC/UPC-LC/UPC SM Duplex

Certification : RoHS Compliant, SGS Certificate, ISO Certificate

Place of Origin : China

MOQ : 10PCS

Delivery Time : 3-5days

Packaging Details : 1PCS/PE Bag

Fiber Type : SM

Cable Material : PE sheath

Cable Diameter : 3.0mm breakout cable

Connector : LC/UPC

Cores : Duplex

Length : 1M, 2M, 3M, 5M or as per customer request

Contact Now

Armored Fiber Optic Assemblies Outdoor Type LC SM High Crush Resistance

Armored fiber optic jumper/pigtail/patch cord can be deployed directly in CO and different harsh environment, without additional tube for protection, save space, reduce construction cost, and make the maintenance more conveniently. Furthermore, the stainless steel tube prevents optic fiber from damage, which improves security and stability of the system.

Application: FTTH, LAN, Test equipment, Military industry, Measuring Equipments, FO cable, FO communication system, CATV, Optical active component and equipment

Features

Protection of stainless steel tube with small caliber

Avoid the damage of torsion

High tensile coefficient and stress coefficient.

Conveninet for application, highly security

Application without damage to cable

Manufacture without damage to cable

Cost cutting for maintenance.

Applications

Machine room

Area Network

Test equipment

National defence

FO sensor

Light communication system

Common antenna TV system

Specifications

Connector Type	SC,LC,FC,ST,MTRJ
Endface Type(nm)	PC	UPC	APC
Insertion Loss(dB)	≤0.30	≤0.30	≤0.30
Repeatability(dB)	≤0.10
Exchangeability(dB)	≤0.20
Return Loss(dB)	≥45	≥50	≥60
Fiber Type	SM, MM
Operation Temperature(℃)	-25℃~ +70℃
Storage Temperature(℃)	-40℃~ +85℃
Durability(time)	>1000 times
Industry Standard	Telcordia GR-326-CORE

Armored Fiber Optic Assemblies Outdoor Type LC SM High Crush Resistance

Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers

Product Tags:

multimode fiber optic cable

fiber optic jumper

Quality Armored Fiber Optic Assemblies Outdoor Type LC SM High Crush Resistance wholesale

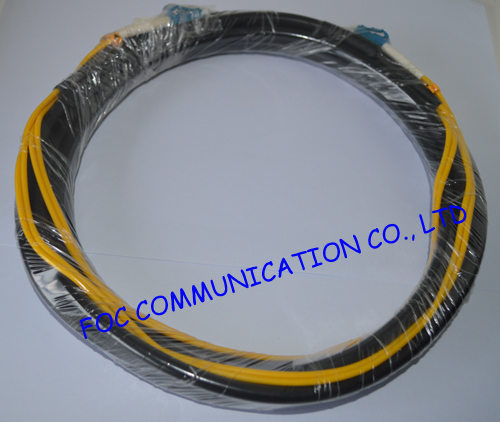

Armored Fiber Optic Assemblies Outdoor Type LC SM High Crush Resistance Images
